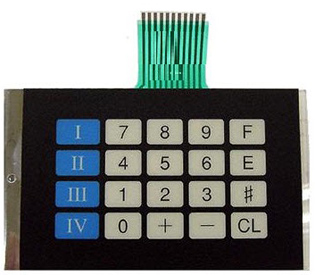

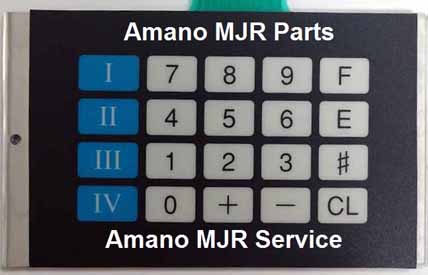

Amano MJR keypad. Fits Amano MJR7000 and Amano MJR8000, all models.
We stock nearly all Amano time clock parts.
This is an adhesive-backed keypad, with a centering screw on the left side.
It can be replaced by the end-user in most cases.
Note: We repair Amano time clocks. Quick, reasonable and guarantee. Fast service.
Part number AXI-00850
How to replace an Amano MJR 7000 and MJR 8000 keypad
We can do it for you, or you can do it yourself:
Tools needed:
Small philips head screwdriver, large flat blade screwdriver,
Clean shop rag, cleaning alcohol (from the hardware store) and 1 shop rag.
Sharpie or magic marker
Take the standard precautions: Unplug the clock, don't smoke as you work with alcohol, use common sense knowing that alcohol can damage plastic surfaces, even eyeglasses.
Steps:
- Unplug the clock. Remove the case (using the Amano 700 key)
- Remove the white locking knob underneath the keypad plate on the right side, if it is still there. Discard it.
- Trace the outline of the keypad using your Sharpie or magic marker.
- Remove the philips screw on the left of the keypad
- Using the flat screwdriver, peel off the old keypad. This will take some muscle.
- Disconnect the ribbon cable, remember how it came off.
- Clean the metal mounting board, but don't clean off your keypad outline.
- Remove the protective coating from the back of the keypad.
- Slide the ribbon cable back though the slot.
- Align and stick the new keypad in the correct position, install the phillips screw.
- Connect the connector (this may take small or slim hands).
- Plug the clock back in. Press CL. If you see errors, check the ribbon cable connection.
That's all! See images on the next page.
