Lathem Sonachron Replacement

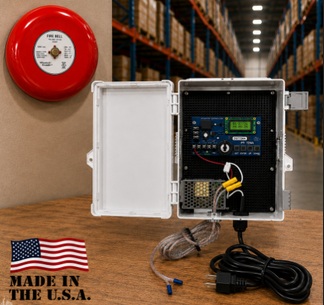

Pyramid timer, cable and 110V bell


Replacement system for Lathem DWA-S with 10' bell wire and loud 110V fire bell. Optional upgrades include momentary ring button, more bells and synchronized clocks. EASIEST SETUP ON THE MARKET.


Our Price: $449.00


 lathem sonachron, Lathem dwa-s, lathem factory bell timer

Accessories & Supplies:

DetailsIDProduct NameDescriptionPriceAdd To Cart
Click 115 Surge ProtectorSurge Protector$15.00
Click 233 Emergency ButtonManual Ring$45.00
Click 407 25 foot bell wire25 foot bell wire$19.95
Click 405 100 foot bell wire100 foot bell wire$34.95
Click 413 250 foot bell wire250 foot bell wire$94.95
Click 88 Loud 6" fire bell110V shop bell, 96-102dB$89.00
Click 86 Loud 4" 120V Buzzer120V horn, 102db - adjustable volume$139.00
Click 95 Synchronized Bright Red Digital ClockPyramid digital "child" clock$189.00
Click 232 Synchronized Wall ClockPyramid 13" Round Wall Clock$180.00
Click 786 Synchronized Digital Clock with SecondsPyramid 4357G digital clock with seconds$219.00
Click 93 BCD Cable 50'Master Clock Signal Cable$19.95
Click 94 BCD Cable 100'Master Clock Signal Cable$32.00




Pyramid 7000 scheduled work shift timer with 110v-10Amp power output

This is an example of what you can do with it.
200 ring time events; each event can be used on up to 7 days.

If you one of these, know that they have been out of production since 2018






110VAC upgraded Pyramid 7000 scheduled timer can control:

1) Up to 200 Pyramid Digital child clocks, 8 Analog (dial face) clocks
2) Unlimited 110VAC bells and buzzers.  Power boosters may be needed over long distances and multi-bell installations.


Includes:

  • Pyramid 7000 Master Clock terminal and easy-to-understand owners manual
  • Power supply
  • Internal 110V - 10Amp mechanical relay.  Pre-wired and tested
  • 10 Amp rated 110V grounded power cord
  • Toll-Free Telephone Support
  • One year product replacement guarantee
  • 10' bell wire cable - add more as needed!
  • Loud RED fire bell, add more as needed

Upgrades:

Momentary Contact (ring) button.  [Deliveries, lunch wagon, emergency button]
Synchronized digital wall clock
Strobe light that flashes when the bell rings

Specifications:

  • 6" high, 5.5" wide, 2" deep
  • Requires two plugs (a duplex outlet)
  • Initial output is 24VDC, modified to 110VAC with 10Amp DPDT Mechanical Relay

Suggestions:

  • Add bright, easy-to-read digital synchronized wall clocks throughout your facility
  • The 7000 can control Pyramid digital and Pyramid analog (clock face) clocks
  • We have over 800 of these systems installed (as of August, 2021)
  • We are not copying web content to our website, we know this equipment inside and out

    We have actual installation and on-site problem solving experience
    In this business, we are unique, with hands-on experience, and that is why you should call us.

The Pyramid 7000 110V replaces the Lathem Sonachron, Lathem DWA and DWA-S workshift timers.

Adding these features:
Forward and Reverse buttons for dramatically easier schedule setting and changes
Longer lasting internal battery - no need to replace it every 4 years, a common nightmare that the Sonachron had
Variable duration rings, from 1/2 second to 59 seconds  AKA 1 second ring for a "two minute warning"
200 Ring times PER DAY (15x more than the Sonachron had), shared across 7 days
Very easy set-up, Secure locking metal case - instead of a passcode
Run up to 200 digital or analog clocks - or up to 8 Pyramid analog (dial face) clocks
Run as a master clock along with bells, or as a workshift timer alone, or as master clock alone.
